Micro blood sample requirements
Micro Sample
Product Systems for Pets

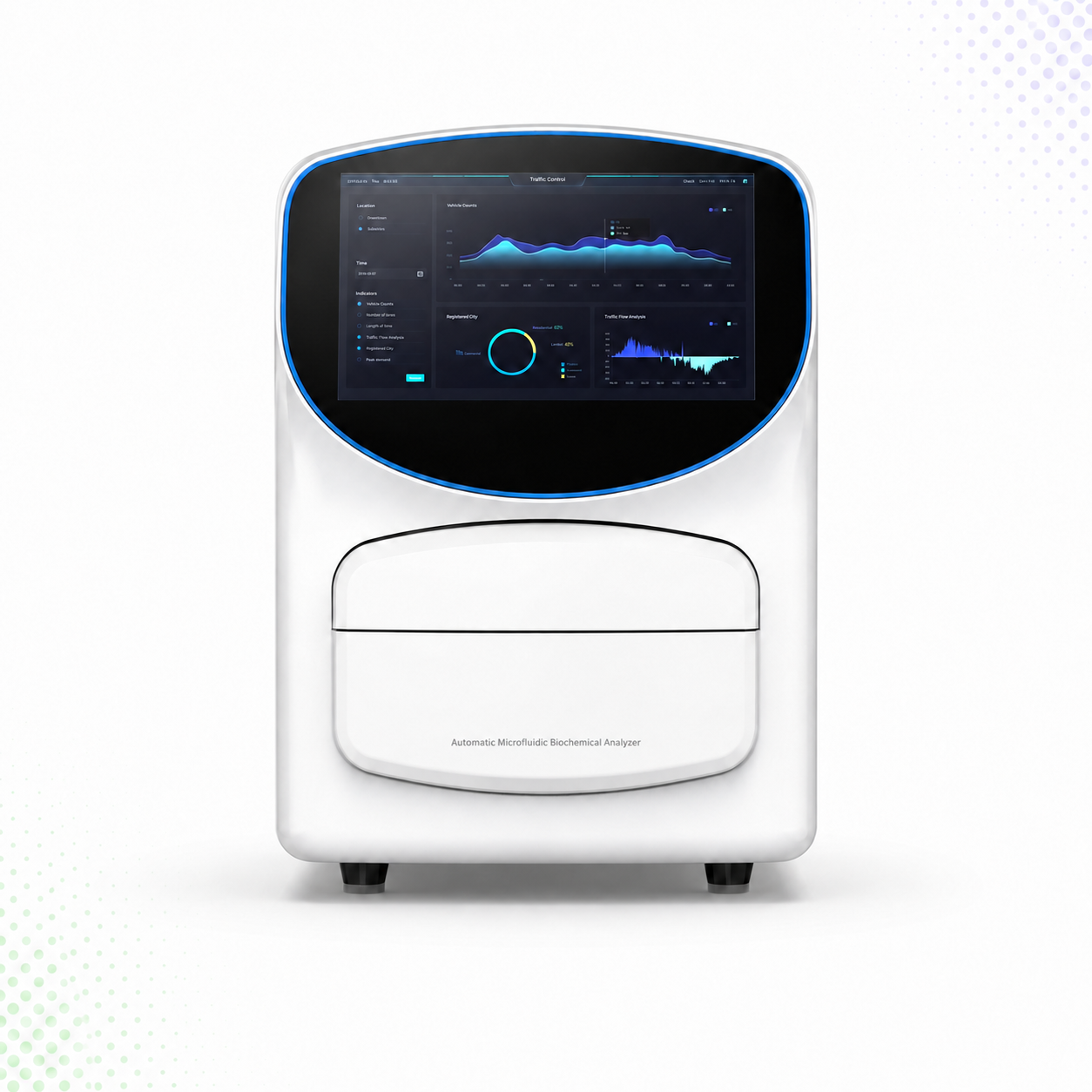

Vetsight Pet Automatic Biochemistry Analyzer
Compact automatic veterinary biochemistry testing with serum or plasma samples, about 14-minute results and connected data management.
At a Glance
Key Advantages
Easy maintenance
Easy Maintenance
Easy portability with fast results
14-Min Results
Easy to manage data
Data Management
Product Features
Explore Biochemistry Analyzer in Detail
01 · Micro Sample
Micro blood sample requirements
Add sample volume of 150 μL, support plasma or serum. It is more convenient and safe to collect blood for small animals and pets.

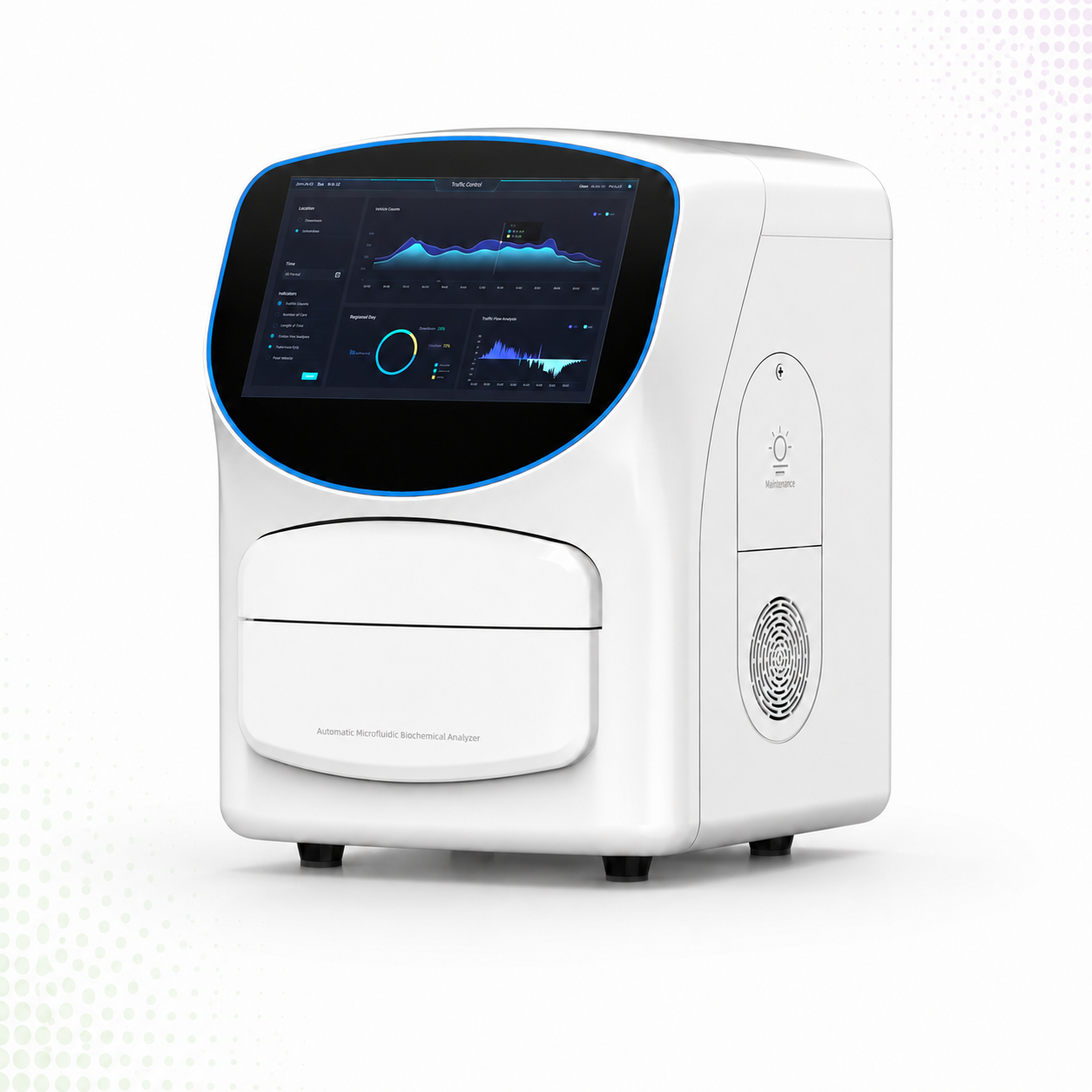

02 · Easy Maintenance
Easy maintenance
There are no pumps, pipes, and other consumables.

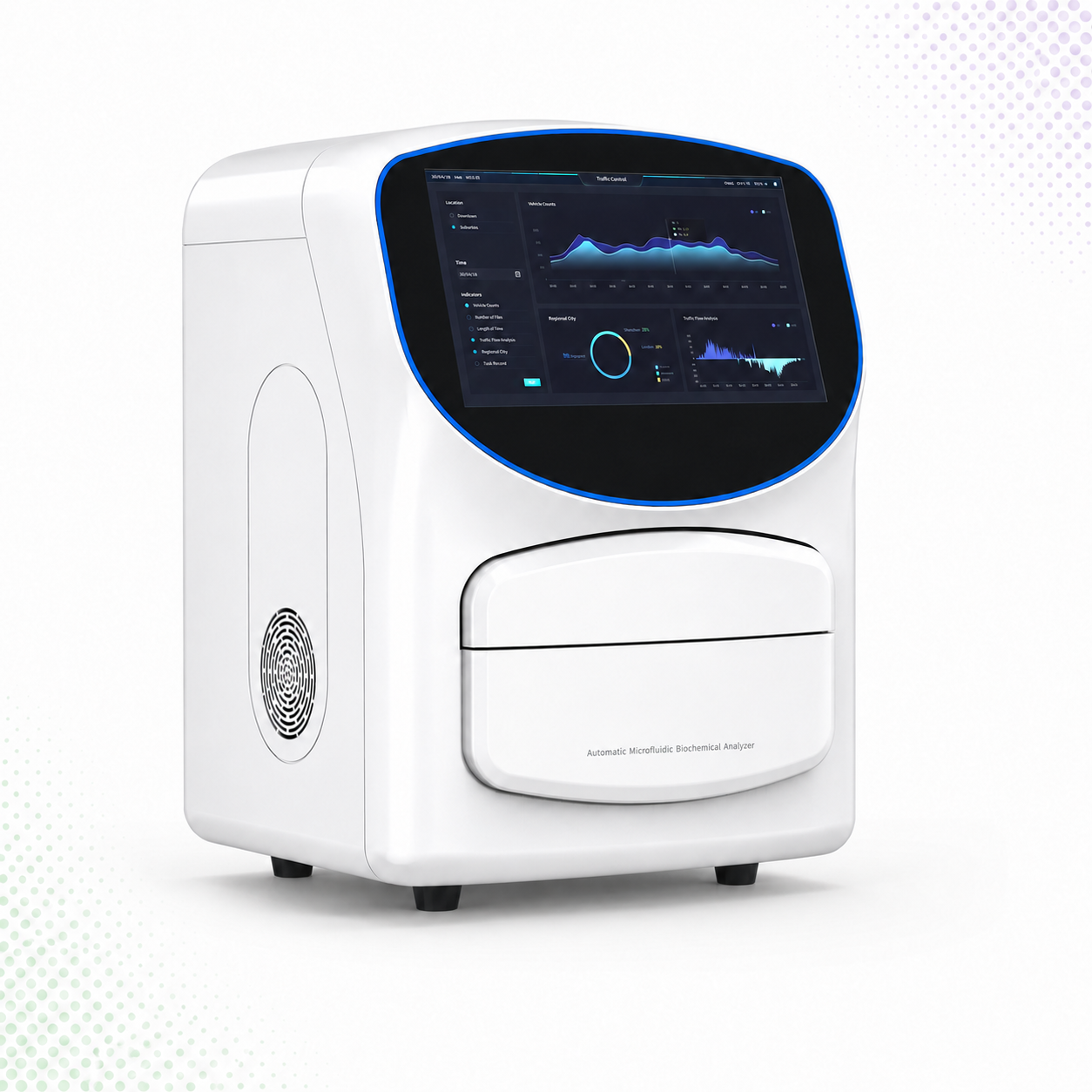

03 · 14-Min Results
Easy portability with fast results
14 minutes for test results to reduce diagnostic waiting time. Built-in intelligent real-time quality control system (IRQC) ensures the accuracy of the detection.

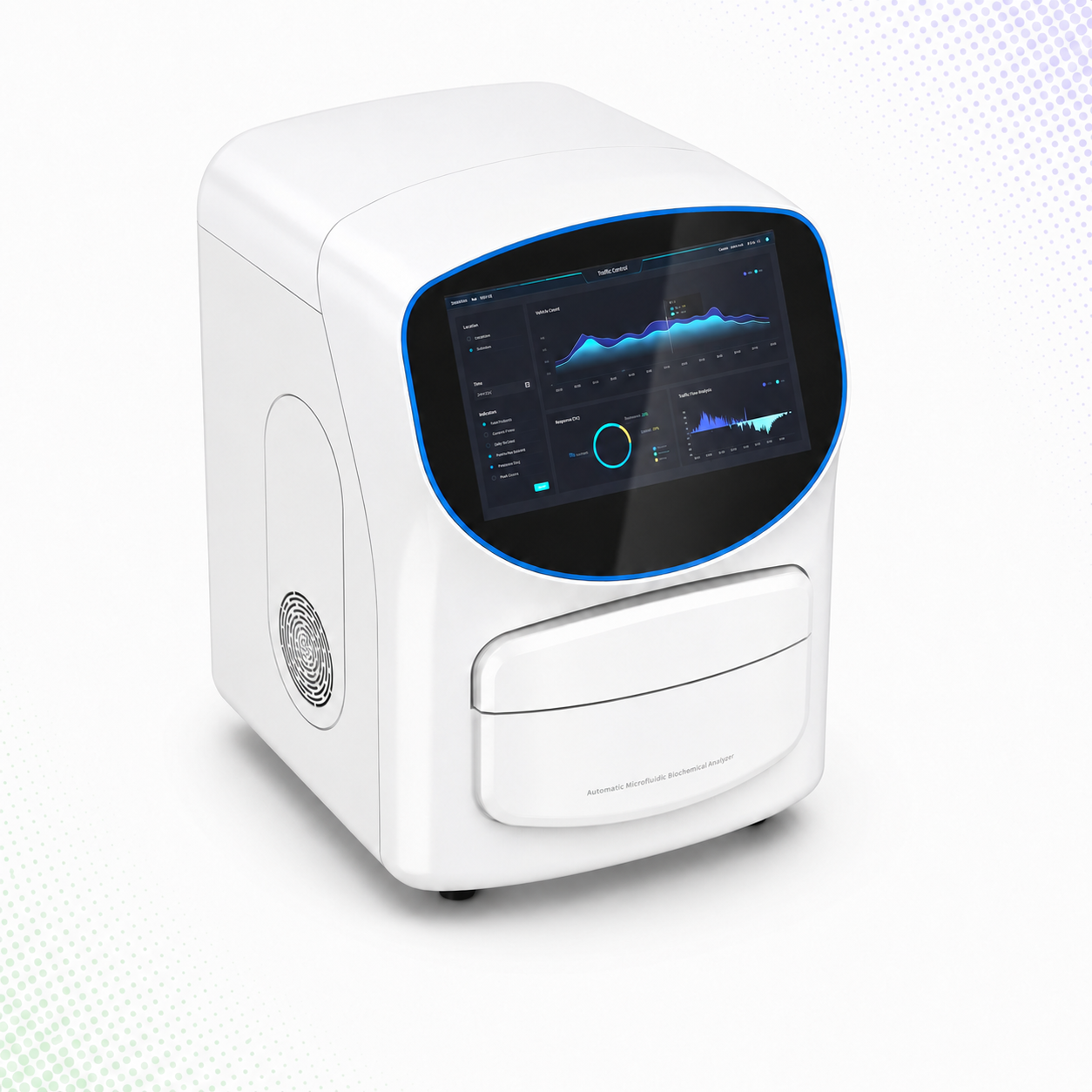

04 · Data Management
Easy to manage data
Memory capacity up to 500,000 patient records. Through the RS-232 port, it can be connected to the LIS laboratory information system to facilitate customer data management.

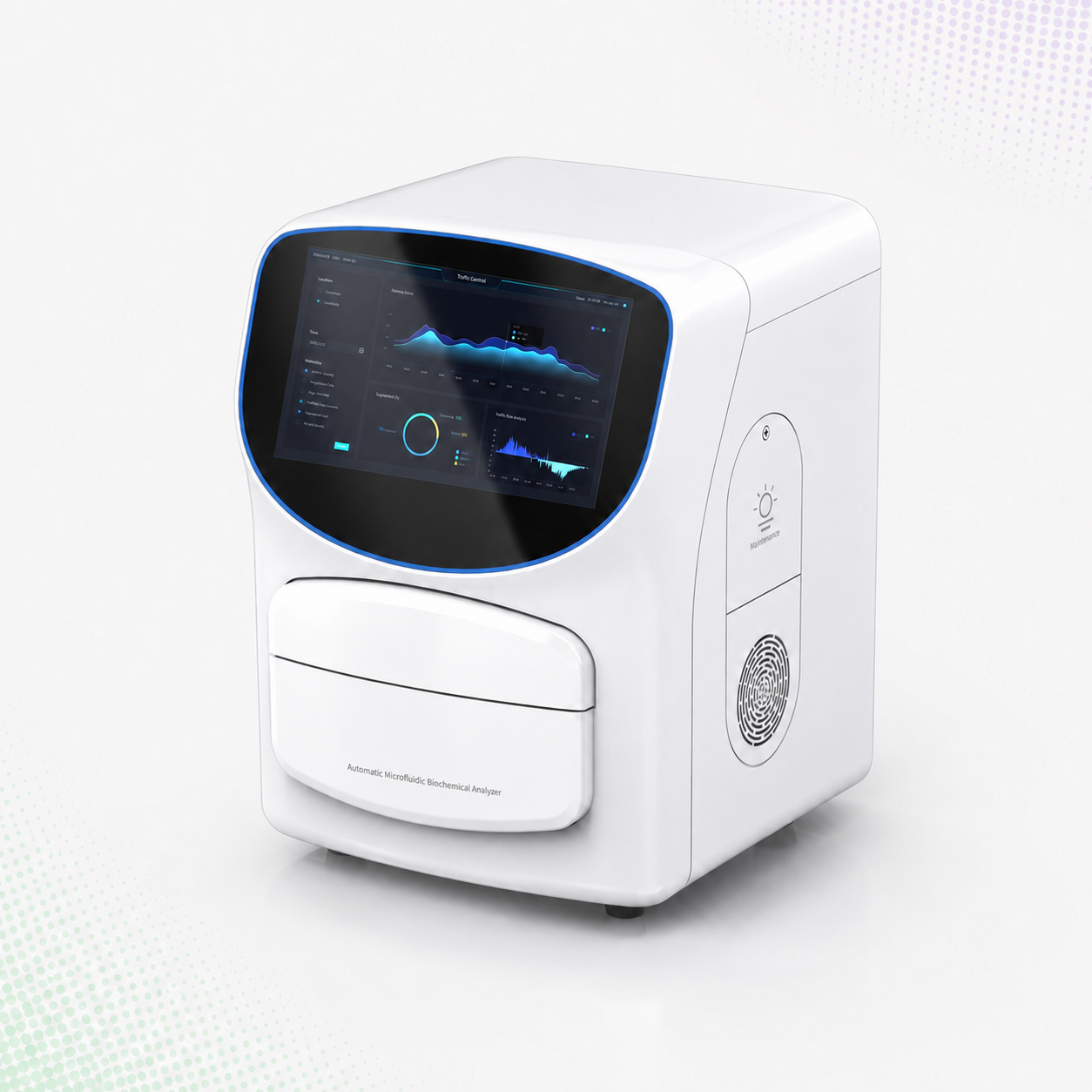

05 · Portable Design
Compact and portable
4.5 kg, ultra-small design. Test results in 14 minutes.
Core Parameters
Product Specifications
- Sample type
- Serum, plasma
- Detection method
- Colorimetric method, transmission specific turbidimetry
- Test time
- 14 min
- Analysis method
- End-point method, rate method
- Reaction temperature
- 37°C ± 0.3°C
- Wavelength
- 340, 405, 450, 505, 546, 600, 660, 750 nm
- Interface
- USB, network port
- Operating system
- Windows
- Working environment
- 10–30°C; support external barcode scanning
- LIS connection
- Supported
- Display
- 8-inch capacitive touch screen
- Printing
- Built-in printer, network printing
- Storage
- 64G
- Power supply
- 110–240V, 50/60Hz
- Dimensions
- 210 × 230 × 300 mm
- Weight
- 4.5 kg
